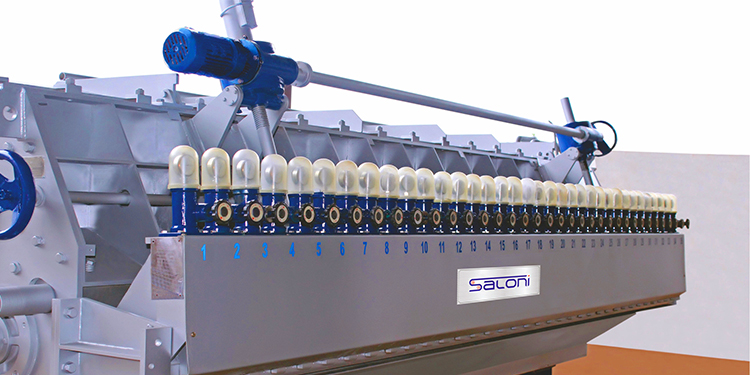

Head box considerably influence the charactertics of paper like basis weight cross profile , uniform formation and fiber orientation.

There are two type of head box Open type & Closed Type
( Pressurized Head box )

Tapper header and step diffuser for distributing stock evenly Micro adjust of slice lip with dial indicator.

Top slice adjust by jactuator with electro mechanical gear motor and PLC Control Operation.

Top slice up and down movement by jactuator with electro mechanical gear motor and head box PLC Control Operation.

We Manufacture an ample range of exemplary quality Wire Part with cantilever system, which made Wire change quick and easy. The complete heavy duty wire part frames are fabricated with M.S. & cladded with 2mm thick S.S. 304 sheet.

Manufacturing Range

Simple Fourdrinier to Multi Layer Board machine Wire parts, 50-500 TPD with speed up to 800 MPM The wire part is equipped with series of imported ceramic Tops & S.S. Fabricated our design Boxes for Ceramic Tops such as Forming board, Hydrofoil Boxes, Vacuum Boxes.

Includes : Breast Roll, Suction couch roll, Combination Roll, FDR & Wire return rolls.

• Easy, Fast & Safe Mounting of wire
• Semi Automatic Wire Tensioner
• Good Quality of Shower for Better Cleaning & Lubrication.
• S.S. 304 Cladding to Prevent Rust
• Breast Roll Lowering Lifting Arrangementfor Easy Operation
• Electric Motorised Stretchers
• Good Quality of Doctoring System.
• Proper Designing of Wire Length According to Requirement

The Press Section mechanically squeezes water from the wet web coming from Wire Section High dryness afterthe press is require to reduce steam consumption. Removal of water in Dryer Section through evaporation is 7-10 times costlier than Press Section.

Press has two major objectives 1.To remove water from the web, 2.To consolidate the web, to bring fiber in to close contact for bonding. Straight Jumbo Presses with Blind Drilled Press Rolls, Double Felting and higher Nip Loads help in improving the Physical Properties of paper due to greater sheet consolidation . Machine efficiency improves with low number breaks.

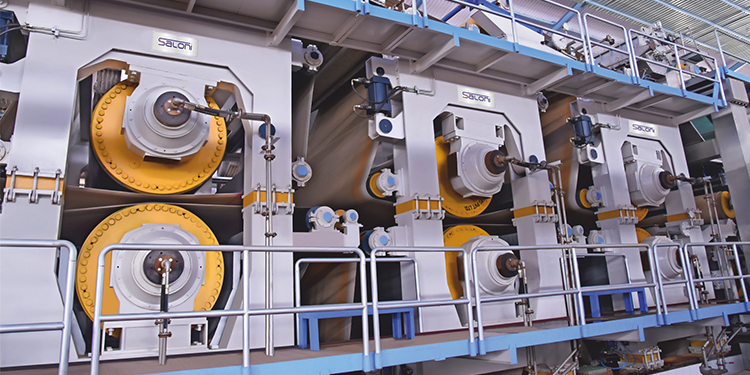

Features of Straight Press

• Duly coated Press roll with size of 0 800 to 0 1500 mm for operating Nip Loads from 60 to 350 Kg/cm .
• Straight Press is designed for Low & Moderate speed paper machines for manufacturing wide range of papers.
• Jumbo press is designed for maximum dewatering efficiency.
• Our Designed Heavy duty sturdy frame with sufficient rigid tie for speed up to 600 MPM & width up to 6 Mtr. for Kraft & Board Paper.
• Design of frame for quick & easy felt changing.
• Less Number of Felt rolls are be removed during felt changing.
• Trolley system for easy & safe Press roll changing .
• Easy tail feed.
• Micro travel oscillating High pressure shower, Lubricating shower & Uhle box for felt conditioning.
• Pneumatically operated cylindrical type Auto guide for Felt guiding.
• Robust & maintenance free stretcher with manually & Electromechanical operating.
• Better arrangement of doctoring system.

Advantage of Straight Press

• Improved sheet profile
• Maximum De watering
• Improved sheet strength
• Improved machine efficiency
• Reduced steam consumption

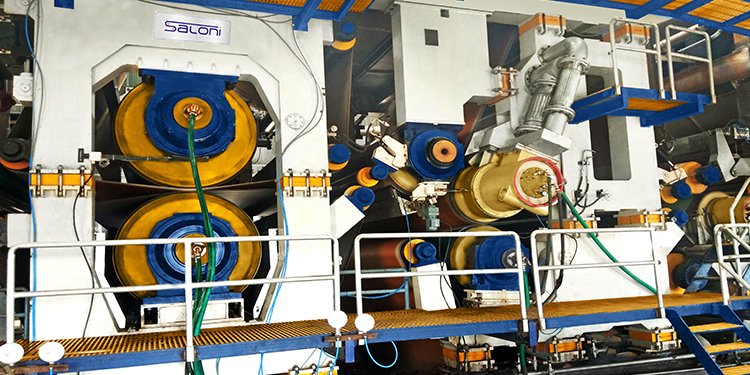

K-Press is specially designed to produce lighter GSM Kraft Paper with more efficiency. Specially designed K-Type PRESS SECTION with Center Suction Press roll serving two Suction Nips, Compact design with Two Nips ensures lesser space requirement but with higher exit dryness and higher hulk of the Sheet.

Features of K-Press

• K type Press consist of Center Suction Press Roll, Bottom B.D. Roll & Top Dynarock with appropriate size for operating Nip Load from 90- 120 kg/cm.
• K - Press is designed for Moderate & High speed paper machines for manufacturing wide range of papers.
• K - Press is designed for maximum dewatering efficiency.
• Heavy duty sturdy frame with sufficient rigid tie for speed up to 750 MPM & 5500mm deckle at Pope Reel for Low GSM Kraft Paper.
• Design of frame for quick & easy felt changing.
• Less Numbers of Felt rolls are to be removed during felt changing.
• Trolley system for easy & safe Press roll changing .
• Easy tail feed.
• Micro travel Oscillating High pressure shower, Lubricating shower & Uhle box for felt conditioning.
• Pneumatically operated cylindrically type Auto guide for Felt guiding.
• Robust & maintenance free stretcher with manual or Electromechanical operating.
• Better arrangement of doctoring system.

Advantages of K-Press

• Improved sheet profile
• Maximum De watering
• Improved sheet strength
• Improved machine efficiency
• Improved Machine runnablity
• Reduced steam consumption
• High Speed Capabilities.
• Produce Multiple GSM Product Efficiently

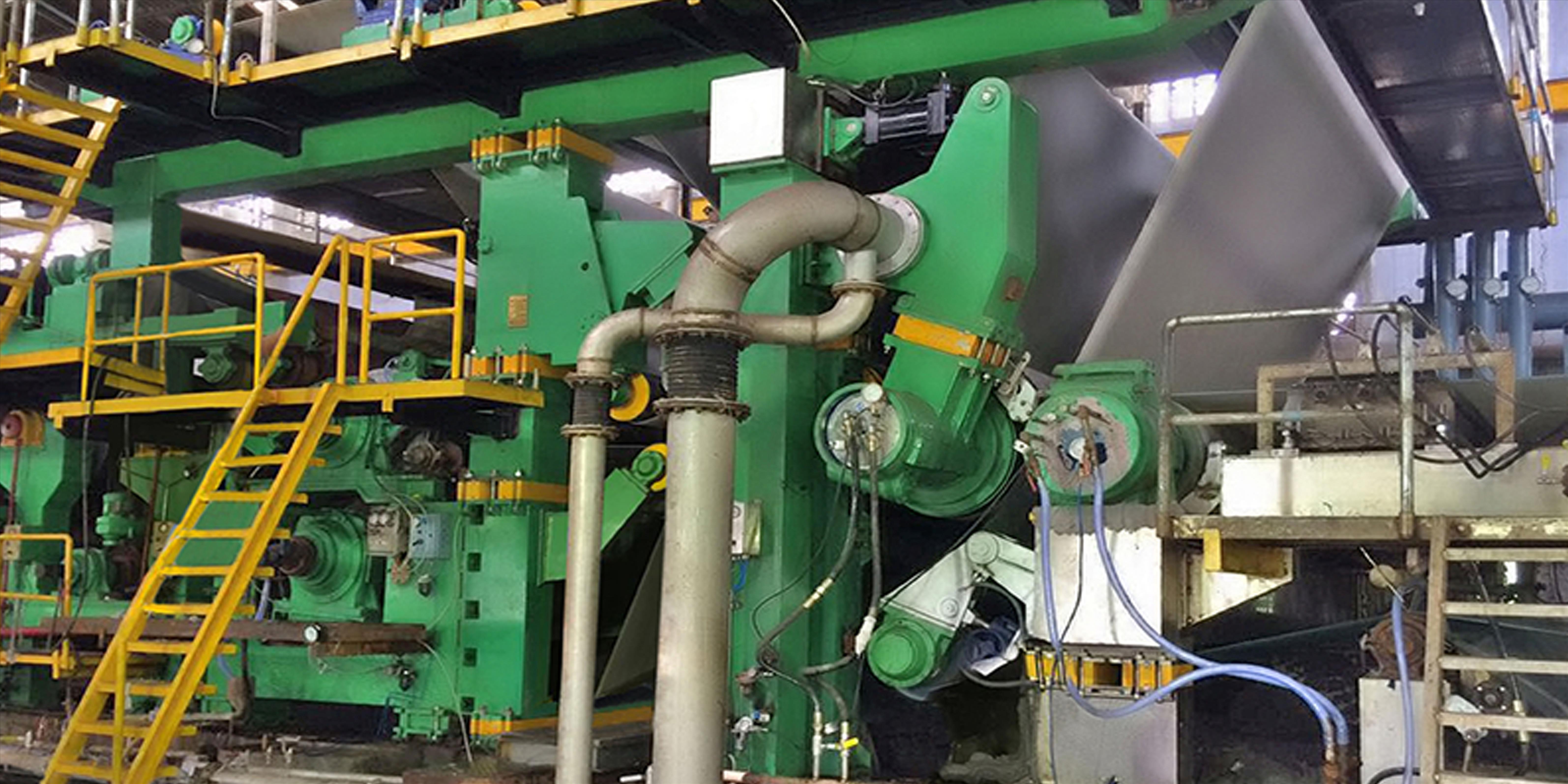

Bi-Nip Press is specially designed for Writing Printing & News Print paper above 400 MPM Machine speed. Specially designed BI NIP PRESS SECTION with Suction Pick Up Cum Press roll serving two Suction Nips, Compact design with Two Nips ensures lesser space requirement with higher exit dryness and better runnability.

Features of Bi-Nip Press Section

• Bi-Nip Press consist of Center Dynarock Press Roll, Top B.D. Roll & Suction Pick Up Cum Press roll with appropriate size for operating Nip Load from 70-110 kg/cm
• Bi Nip Press is designed for Moderate & High speed paper machines for manufacturing wide range of papers.
• Bi Nip Press is designed for maximum dewatering efficiency Heavy duty sturdy frame with sufficient rigid tie for speed up to 800 MPM & width up to 6 mtr for Writing Printing & News Print Paper.
• Design of frame for quick & easy felt changing.
• Design of frame for quick & easy felt changing.
• Less Numbers of Felt rolls are to be removed during felt changing.
• Trolley system for easy & safe Press roll changing .
• Easy tail feed.
• Micro travel oscillating High pressure shower, Lubricating shower & Uhle box for felt conditioning.
• Pneumatically operated cylindrical type Auto guide for Felt guiding.
• Robust & maintenance free stretcher with manual & Electromechanical operation.
• Better arrangement of doctoring system.

Supply

Bi-Nip Press successfully running at 700 MPM and 5500mm deckle at Pope Reel with Writing & Printing and News Print quality.

Advantages of K-Press

• Improved sheet profile
• Maximum De-watering
• Improved sheet strength
• Improved machine efficiency
• Improved Machine runnablity
• Reduced steam consumption

We also offer a wide range of imported and indigenous, dynamically balanced Drying Cylinders of 1200 to 1800 mm dia. in graded Cast Iron with operating Steam Pressure up to 4.5 kg/cm2
